NAVIGATING, SETTING UP AND MANAGING THE WHEATNET IP AUDIO NETWORK

Meet Navigator

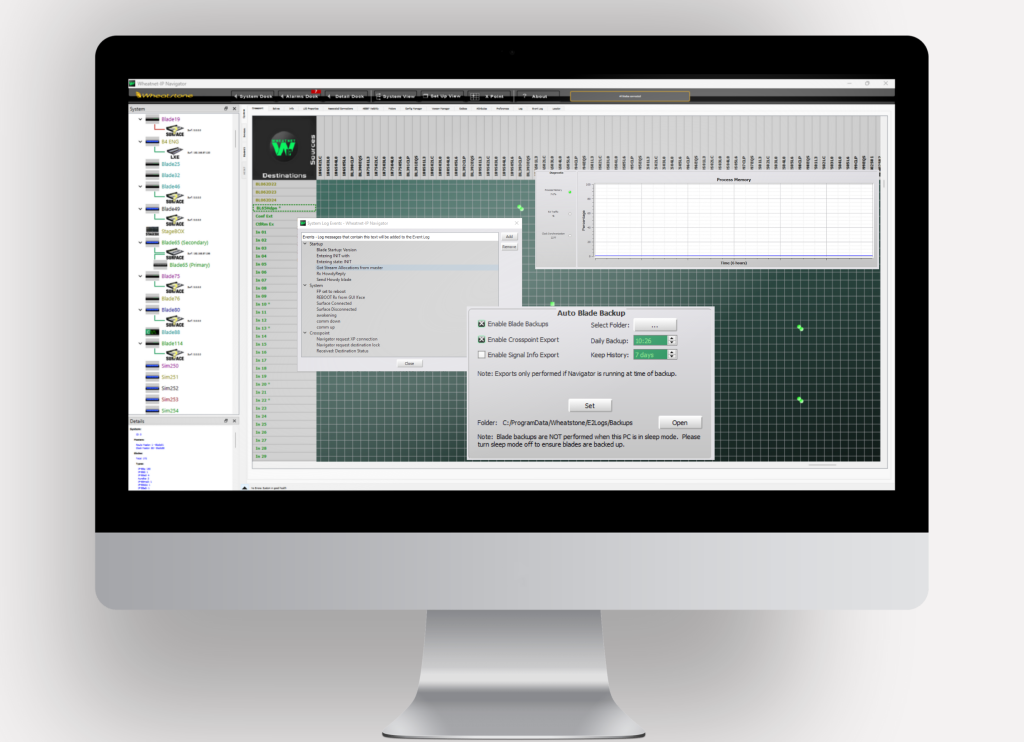

Navigator is the control center for the WheatNet IP audio network. Through Navigator, you can make audio connections, set up logic signals and connect both physical and virtual LIO inputs to outputs. You can fire salvos, set up AES67 signals, set associated connections, view meters, update Blades and more. While these system functions can be accomplished via the front panel on any I/O Blade, Navigator provides a convenient and centralized interface for configuring, controlling, and monitoring elements and software network-wide.

BENEFITS
OVERVIEW

NAVIGATOR

WHEATNET IP NAVIGATION SOFTWARE

Comprehensive System Control: Simplifies the setup of audio sources and destinations as well as managing audio paths, salvos, and macros throughout the network.

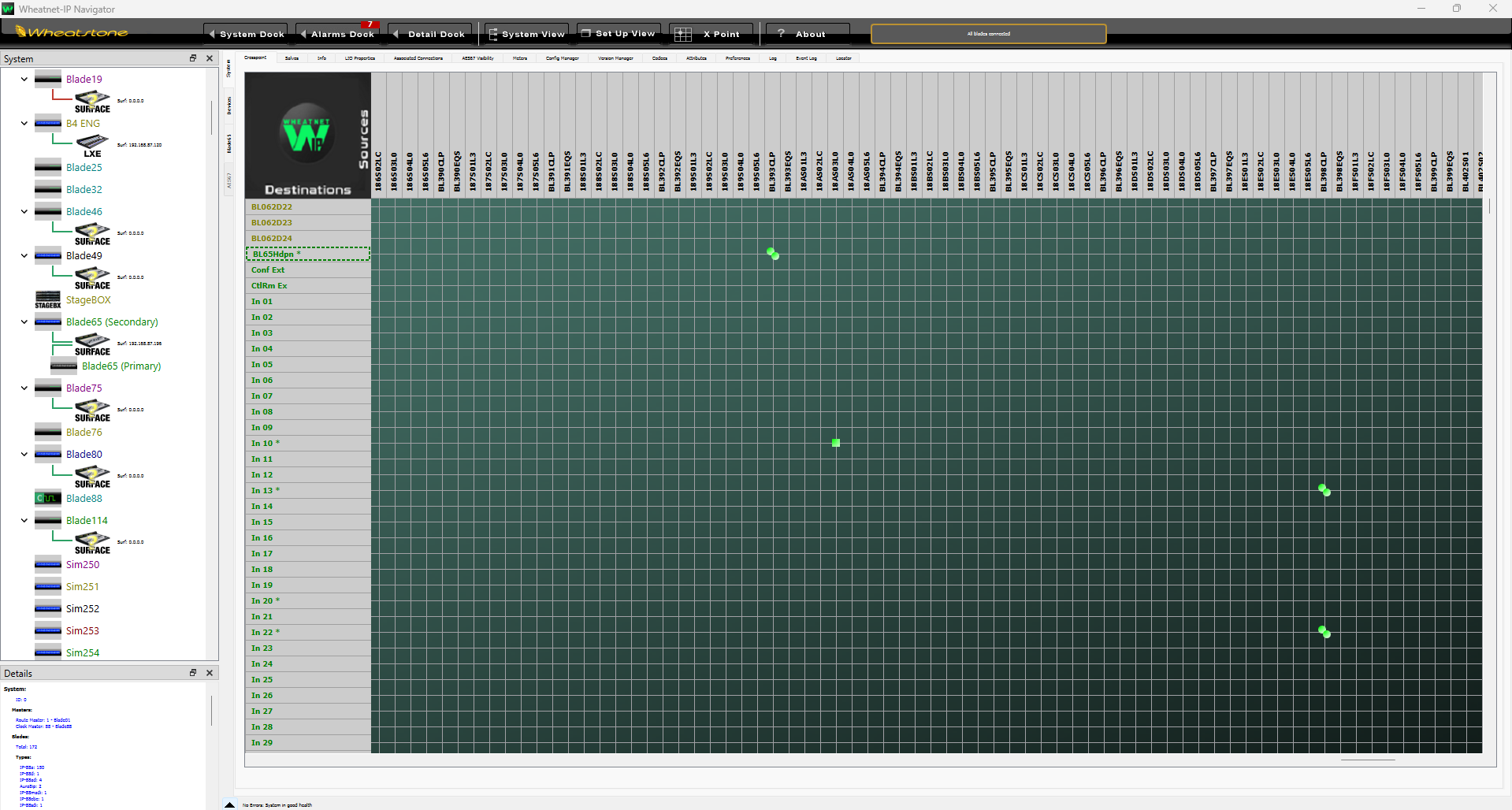

Easy Crosspoint Navigation: Connect audio sources, destinations, and logic easily, including associated connections. View signal signal types and logic combinations throughout the network.
Multi-location Control: Navigator supports running multiple instances of the software, enabling simultaneous control from multiple locations.
Advanced Failover Management: Includes features like silence detection and failover contingencies, ensuring seamless audio delivery even during emergencies.
User Personalization: Offers the flexibility to personalize the system setup for specific events, shows, or individual personalities, ensuring a tailored audio experience.
One Interface, Multipole System Options: Navigator provides one interface for backing up system configurations, setting up AES67 parameters, configuring Blades, and managing time and clock sources.
Integration and Expandability: Supports third-party device interfaces and SNMP management and alerting.
Windows® PC Compatibility: Fully compatible with Windows PCs, providing a familiar and user-friendly graphical interface.

OVERVIEW

NAVIGATOR, WHEATNET IP NAVIGATION SOFTWARE

The WheatNet IP audio network is a dynamic, distributed network with decentralized redundancy, intelligence, and audio tools at each I/O Blade connection point. Many of the functions of the network can be set up and monitored locally by Blades, but for setting up, managing and monitoring the system network-wide, operators use Navigator.

Navigator is a PC based software suite that provides a central hub for configuring, controlling, and monitoring audio sources, destinations, signal paths, and more.
