AML Azalea

MODERN CONSOLE, ANALOG VALUE

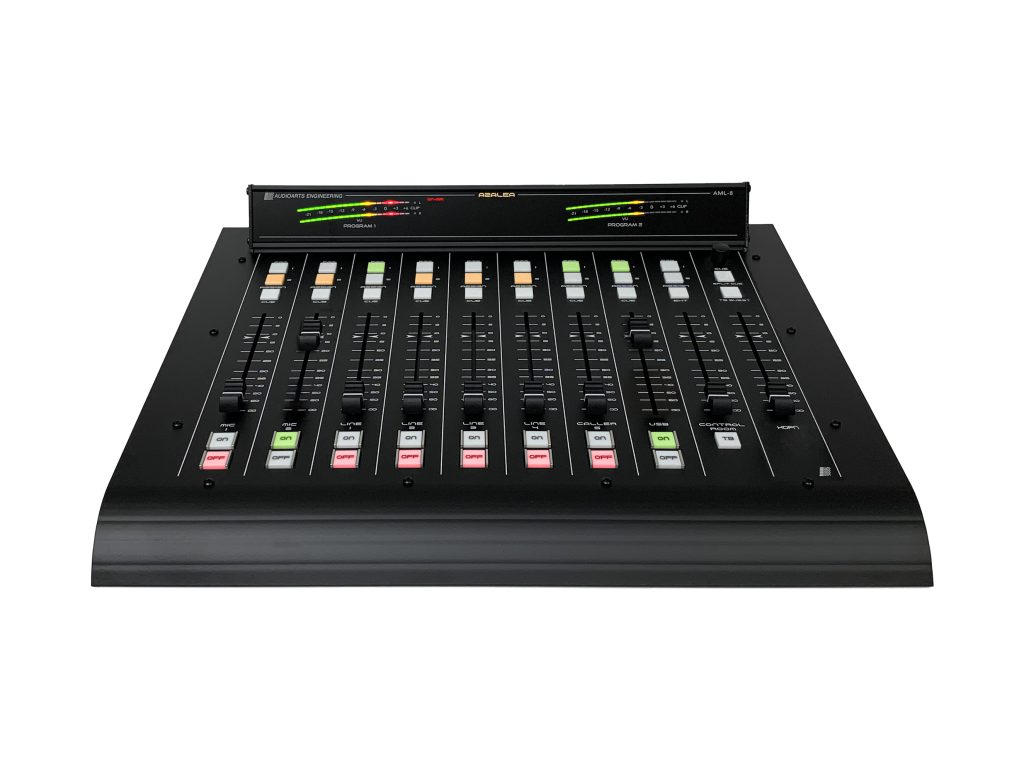

AML 8 Front
Meet AML Azalea

What do you get when you combine Wheatstone engineering with Audioarts value? Features and quality go way up, price goes way down, and the result is a sleek little console that fits easily into any home studio, voiceover booth, remote truck or on-air studio.  Not just another analog facelift, the new AML 8 is re-engineered from the inside out to pack modern features into its compact size and price. This 8-channel console has  pro faders, USB for today’s feeds and is quality engineered with Wheatstone exclusive features such as SuperQuiet mic preamps to bring out the best in vocals.

The AML console is part of the Audioarts Engineering studio line, Wheatstone’s value line that includes headphone amps, talent stations, consoles, and control surfaces.

AML 8 Front Callouts

AML AZALEA

MODERN CONSOLE, ANALOG VALUE
  • Pro, 100mm throw faders with separate on/off buttons
  • USB port for automation, laptops, and other modern feeds
  • Super Quiet™ mic preamps for low noise
  • External power supply built by Wheatstone to extend the life of your console
  • Built-in headphone amp with split cue
  • Quality built for best value found in an analog console
Audioarts AML Azalea - Rear Callouts

OVERVIEW

MODERN CONSOLE, ANALOG VALUE

This 8-channel console packs in a lot for the value. USB and RJ-45 connectivity, separate power supply, and professional design and construction with all the right metering, busses and faders.

FEATURES

MODERN CONSOLE, ANALOG VALUE
AML 8 Front
AML 8 Rear
  • 8 input faders by 2 stereo bus configuration
  • 2 mic channels, differential input on Phoenix style connector, variable gain
  • Four stereo analog channels, input on RJ-45 connector, dip switch level selectable (-10, +4)
  • USB stereo audio input on USB type B connector with built-in D/A convertor
  • 2 main stereo outputs, PGM1 and PGM2, balanced +4 on RJ-45 connectors
  • Cue bus and caller mix-minus outputs, balanced +4 on RJ45 connectors
  • Control room output with fader level control balanced +4 on RJ-45 connector
  • Separate guest output, balanced +4 on RJ-45 connector, with talkback.
  • External input, balanced, on RJ-45 connector for off-air monitoring.
  • Built-in headphone amplifier with split cue function
