DMX

CONSOLE, AOIP AND ETHERNET SWITCH IN ONE VALUE PACKAGE

Audioarts DMX - Callouts
Meet DMX

The DMX console system marketed under the Audioarts value brand includes console and mix engine with local I/O and five-port Ethernet switch for a plug-and-play, fully self-contained AoIP system in one. Network ready and available in an 8-fader (DMX-8) or 16-fader (DMX-16) frame with four program busses and bus-minus on every fader, the DMX console is often used in budget studios that serve backup to main studios in a large facility or as the main studio console for smaller operations.

Optional Remote DMX is available for navigating, setting up and operating the DMX console from anywhere.

Now with the addition of the WheatNet IP automation control protocol (ACI), the DMX console system provides full automation and playout integration and the ability to add touchscreen panels using WheatNet IP ScreenBuilder tools.

The DMX console system is WheatNet IP compatible, making this the only Audioarts value console with mix engine capable of expanding into full WheatNet IP networking capabilities.

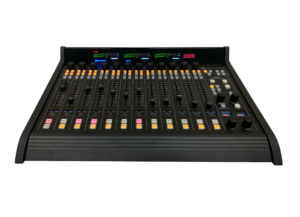

DMX 8 Console

DMX CONSOLE

NETWORK AND CONSOLE IN ONE
  • IP audio surface with local I/O
  • Multi-function controls with OLED display on each channel
  • 5 port Ethernet switch built into mix engine
  • Automatic mix-minus on every channel
  • Available in 8 or 16 channel frames
  • Plug in and ready for air
  • Seamless control and integration with most radio automation systems
  • Separate power supply built for broadcast for component longevity
  • WheatNet-IP compatible for expansion
DMX - Plug and Play

OVERVIEW

DMX, NETWORK AND CONSOLE IN ONE

The DMX console with mix engine is adaptable to just about any studio configuration, from a standalone on-air desk or a two-studio air/production configuration on out to a large, multi-studio network via WheatNet IP audio.

The DMX all-in-one switch, console and AoIP system offers the speed and flexibility of a complete, self-contained network without having to add on an external switch. As a starter AoIP system for the two- or three-studio facility, the DMX system provides basic networking between studios, yet enables each studio to act independently. The DMX mix engine has a built-in five-port Ethernet switch for routing sources and destinations between studios, and now with WheatNet IP ACI protocol, can integrate seamlessly with existing radio automaton systems.

DMX consoles with mix engine are also WheatNet IP compatible and therefore expandable as part of a WheatNet IP audio network of consoles, software, appliances, and processing.

DMX-8 and DMX-16 consoles have four program busses and bus-minus on every fader as well as convenient multi-function knob on each channel for adjusting pan, mode, dynamics, and input sources. This console system packs in a lot of value on the network and on the surface, with all the features you’d expect in a broadcast console, including talkback and cue functions, EQ/dynamics, and control room, studio and headphone monitors, plus LED metering, built-in timer, and four-event recall.

DMX-8 and 16 Remote
REMOTE DMX, CONTROL FROM ANYWHERE

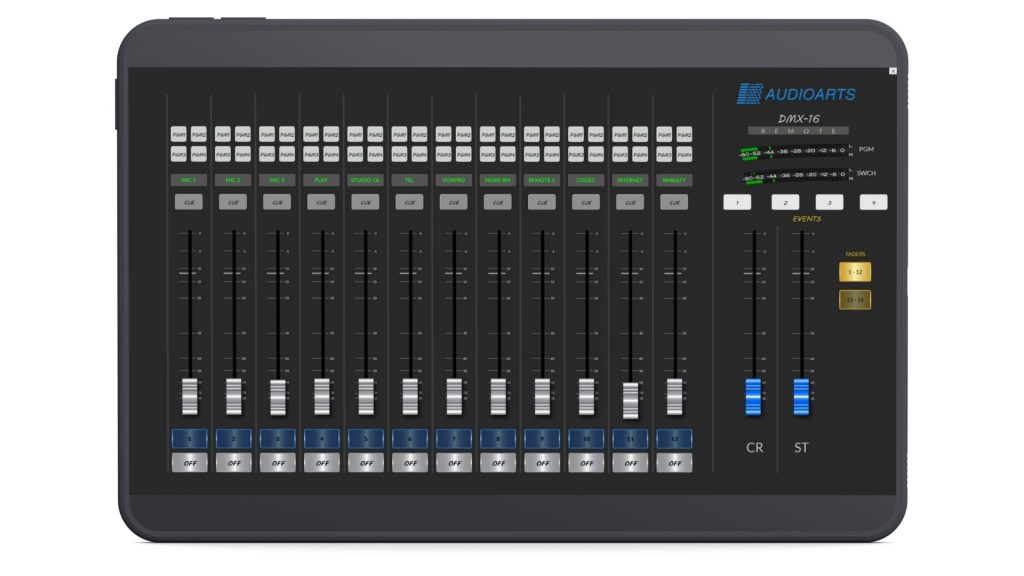

Working in conjunction with the DMX console, Remote DMX provides complementary production functions for separate operators in the same location or in another location over an IP connection. Real-time fader tracking and live synchronization of buttons and controls between the virtual surface and the physical DMX console offer an independent, yet shared user experience for multiple operators – or as a tool for engineers to remote in to correct operator setup issues.

FEATURES

AoIP CONSOLE

DMX Engine Front and Rear
DMX 8 Console
  • Local I/O, AoIP network and console in one system
  • 5-port Ethernet switch built into the mix engine means no need for an external switch
  •  Available in 8- or 16-fader frames
  • Bus Minus (N-1) on each input channel
  • Four program output busses
  • Four event buttons for recalling entire console setups at the touch of a button
  • Pre-programmed processing presets for mic/voice
  • Control room, studio, and headphone jack (with built-in amplifier w/level control)
  • Full EQ functions (4-band parametric with high/low pass and high/low shelving) and full dynamics (compression, limiting, and expansion) on every channel
  • Multi-function channel-encoder knob with OLED display on each channel for control of EQ, dynamics, sources, pan, mode, and more
  • Talkback and cue functions
  • Built-in timer
  • Six logic GP I/O ports for network control
  • WheatNet IP compatible with all Blades, consoles, processors, and software
DMX 8 - Remote
DMX 16 - Remote

Touchscreen GUI:

  • Complete set of screens provided to allow control over every aspect of the DMX control surface
  • Option: ScreenBuilder™DMX with support for unlimited number of screens (which run one at a time) allows you to build any type of custom screen you need
  • Configurable Home screen with up to 8 Monitor, 4 Aux, 4 Mix-Minus meters
  • Linux based OS with touchscreen support accessible via HDMI video output
  • Full screen XY controller built in
  • Digital timer and clock on home screen
  • Add custom logo to clock background

Optional Remote L Series is available for navigating, setting up and operating the L Series console from anywhere.

AUDIOARTS MIX ENGINE
DMX Engine Front and Rear

Unique to DMX is the Audioarts Mix Engine, which includes RJ45 connectors for all local I/O audio (StudioHub+ format), logic (WheatNet IP format), five-port switch for robust routing of sources and destinations between studios, and full control interface into major automation systems.

Connections include Mic Preamps Out; 4 stereo/dual mono analog inputs; 4 stereo/dual mono digital inputs; four stereo Program outputs (both analog and digital); 4 stereo analog Monitor outputs (Control Room, Studio, Cue, and operator headphones); 6-port logic GPIO; Engine Ethernet port; 5-Port Ethernet switch to network the Surface, Engine, and three additional devices.

SEPARATE POWER SUPPLY
Wheatstone HPS-516 Power Supply

The HPS-516 power supply is designed to safeguard critical components and regulate power consistently and smoothly throughout the life of your  IP-12, DMX, Air 1, and Air 4 consoles, as well as  TS-4 and TS-22 talent stations.

The HPS-516 power supply is engineered and built to maximum peak-tolerant specifications right here in our factory to protect your consoles and talent stations, ensuring the reliable operation of your most mission-critical studio components for an extended period. Studios are regularly exposed to surges and voltage spikes that can take a toll on equipment. Off-the-shelf power supplies won’t suffice when a 2,000-volt spike comes down the line, yet these commercial supplies are frequently used in many broadcast consoles, leading to a shortened lifespan and reduced reliability over time. Our power supplies are engineered by Wheatstone and manufactured in our factory alongside our consoles and talent stations, all developed specifically to meet the demands and rigors of broadcasting day after day, year after year.

The HPS-516 is available in a single or double rackmount option.

WHEATNET IP ACI INCLUDED
Nab New Blades

DMX consoles with mix engine can tap the full power of the WheatNet IP Intelligent Network to utilize networking and audio tools such as codecs, EQ, dynamics, utility mixers and more built in AES67 compatible I/O Blades.  Also included is the WheatNet IP audio network ACI interface for tightly integrating control features of most radio automation systems and adding touchscreen panels using WheatNet IP ScreenBuilder, providing powerful tools and automation that can replace costly hardware with budget friendly virtual interfaces in many cases.
