LXE • Glass LXE • Remote LXE

Configurable AoIP console, full standalone virtual mixer and remote virtual mixer

LXE Family of Products
Meet LXE, Glass LXE, and Remote LXE

Work from anywhere, the way you like to work. Mix it up virtual in the field or from a fixed console surface in the studio. LXE, Glass LXE and Remote LXE have the same intuitive controls for shared workflows, including mirror tracking of those controls, yet are fully configurable by station, show or individual preferences…whether under glass as a touchscreen interface or as a split frame or single console.

LXE comes with a powerful mix engine and is the flagship console surface for the WheatNet IP audio network with 200+ interconnected AoIP elements, including talent stations, mic processors, virtual interface tools,  server software and control panels to build your own unique studio environment.

LXE Split New
LXE Console with VoxPro
A closer look at VoxPro
Glass LXE

LXE CONSOLE

TABLETOP OR RECESSED. SPLIT FRAME OR WEDGES. METERBRIDGE OR NOT. YOUR CHOICE.
  • Scriptable Soft Controls: Customize your console with programmable buttons that fit each station, show or individual preference.
  • One-touch Event Recall: Instantly retrieve settings and mixes to stay agile during live sessions.
  • Status at-a-Glance: Effortlessly monitor your settings with a comprehensive view that keeps you informed at all times.
  • Fader Mirroring: Integrate seamlessly with Remote or Glass LXE for  extensive control whether in-studio or remotely.
  • Dynamic OLED Displays: Each channel sports two OLED displays, providing detailed feedback and status updates.
  • Programmable LED Buttons: Multicolored LEDs let you tailor the console’s look and functionality to your needs.
  • Flexible Metering Options: Choose the metering style that best suits your broadcast scenario, from traditional formats to modern digital readouts.
  • Automix Capability: Simplify multi-microphone mix environments and enhance speech intelligibility.
  • Extensive Touchscreen Options: Navigate easily through intuitive touchscreens, enhancing your control and productivity.
  • Comprehensive Audio Tools: Embedded tools for dynamics and metering allow for precise audio control right at your fingertips.
  • Channel Layering: Layer up to 32 channels, optimizing space and accessibility.
  • Customizable Build: Configure your workspace to your liking—choose from tabletop, recessed setups, or various frame options. An optional meterbridge is available for enhanced visual feedback.
  • VoxPro Integration: Now with VoxPro jog wheel onboard for fast editing.

GLASS LXE

VIRTUAL MIXER

Includes automixing, dynamics processing, and all the features of the LXE physical console with up to 32 faders of virtual mixing. Glass LXE can be used as an independent virtual mixer or complementary to a physical LXE console.

REMOTE LXE

VIRTUAL MIXER

Multi-touch virtual interface for the LXE console. Real-time fader tracking between Remote LXE and the physical LXE console offers an independent, yet shared user experience for multiple operators.

LXE Console

OVERVIEW

LXE, ULTIMATE AOIP CONSOLE

The LXE is designed to be your console. Every knob, every button, every display can be programmed to accommodate virtually any workflow needed. Configure as a single tabletop with or without meterbridge or inset into your furniture grouped as separate bays connected over a CAT6 cable.

Full color OLEDs reflect your programming, and the touchscreen GUIs let you interact with your audio in fresh new ways to do everything from pinching and dragging EQ to setting up router crosspoints in your network. Along with an app to program and configure the hardware surface, LXE comes with ScreenBuilder™ app so you can create your own touchscreens. There’s never been a more customizable way to work.

GlassLXE5-5bf
GLASS LXE, VIRTUAL STANDALONE LXE SOFTWARE CONSOLE

Bring the studio anywhere. Glass LXE offers a dynamic multi-touch interface that mimics the physical LXE console in every function including automixing, dynamics processing, and up to 32 faders of virtual mixing. Accessible from nearly any computer with a network connection, it allows for real-time audio control across multiple studios, enhancing collaboration and flexibility in broadcast environments. Glass LXE can be used as an independent virtual mixer or complementary to a physical LXE console.

Remote LXE Tablet
REMOTE LXE, SOFTWARE TO ACCESS LXE REMOTELY

Remote LXE redefines remote broadcasting by linking you directly to the LXE console, no matter your location. This system uses a multi-touch virtual interface that acts just like the physical LXE console. With real-time fader tracking, changes made on Remote LXE are instantly mirrored on the physical console, providing a consistent and collaborative environment for multiple operators. Ideal for live remote broadcasts or managing studio operations from afar, Remote LXE ensures seamless control and professional audio quality from anywhere.

FEATURES

TOP OF THE LINE PROGRAMMABLE CONSOLE
LXE-LH-3QTR
Remote LXE GUI
LXE Console

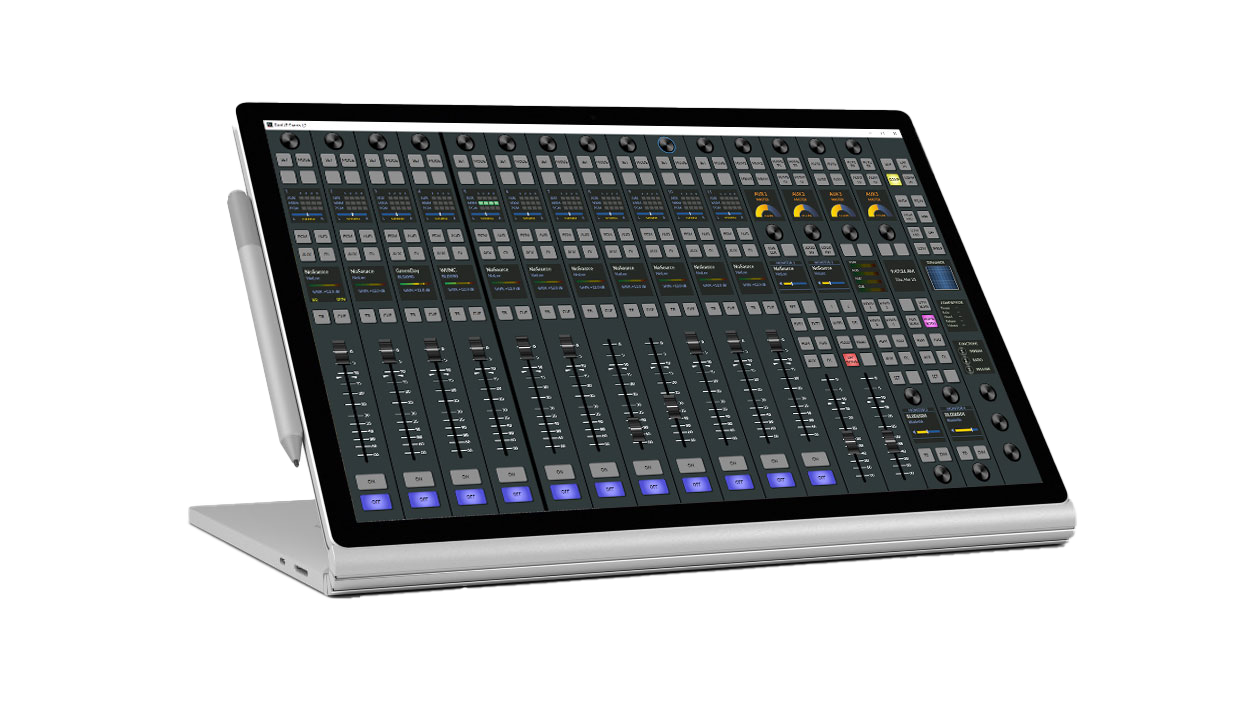

Glass LXE TABLET

Physical Surface:

  • Several form factors available with mainframe configuration flexibility
  • Fully Programmable / Configurable via ConsoleBuilder™
  • Optional meterbridge for tabletop version with high-resolution LED meters and digital timer, all assignable from ConsoleBuilder™
  • Built in Ethernet switch for plugging in accessories or other host panels
  • True IP – connects directly to switch
  • Four stereo Program busses
  • Four stereo Aux busses
  • Four mono or stereo Mix-Minus busses
  • Headphone stream to surface – up to one per panel host
  • Each input channel offers Phase control, Panning, Fader mode Left, Right, Mono, Stereo – each assignable to any knob/button
  • Stereo or mono cue speaker depending on frame size
  • Up to 32 physical faders (virtual faders can be controlled via ACI for third-party flexibility)
  • Every fader has bus-minus or direct out and is configurable as stereo or mono
  • Fader mirroring – allows faders to mirror one another in different locations
  • Motorized fader option
  • 8 layers (to accommodate up to 32 input fader channels) – completely customizable and configurable for each layer.

Touchscreen GUI:

  • Complete set of screens provided to allow control over every aspect of the LXE control surface
  • ScreenBuilder™LXE with support for unlimited number of screens (which run one at a time) allows you to build any type of custom screen you need
  • Configurable Home screen with up to 8 Monitor, 4 Aux, 4 Mix-Minus meters
  • Linux based OS with touchscreen support accessible via HDMI video output
  • 16 monitors (include Control Room, Headphones, Studio 1, Studio 2, etc), each with monitor dimming (all with friendly names)
  • Monitor mix capable – mix all busses together for monitor output
  • Monitor Linking (example: Headphone follow Control Room)
  • Level lock for Monitors
  • Dynamics, including Compressor, Expander, Gate, controlled via touchscreen or optional panel
  • Full Parametric EQ controlled via touchscreen or optional panel (EQ GUI screen with color coded knobs), with highpass and low pass filters
  • Flexible Metering Options
  • Automix function controlled via touchscreen GUI
  • Info screen on surface for current status
  • User management
  • Unlimited number of events
  • Support for remote mix engine (off premises, for use with At-Home systems)
  • Time sync to NTP via mix engine
  • Display brightness controls
  • Accessory panels powered internally
  • Tone generator
  • Clip player option
  • Full screen XY controller built in
  • Multiple Cue feeds if required
  • Digital timer and clock on home screen
  • Add custom logo to clock background
  • Front end app can be used on Windows, Linux, or Mac for additional display of surface functions
B4 Engine - Front and Rear
THE MIX ENGINE

LXE surfaces come with a powerful mix engine that houses all the mixing and processing functions plus essential distribution of signals.

THE CONSOLE

The LXE can be ordered with up to 32 physical motorized faders, with full DSP processing available on all 32 channels. This console is part of the WheatNet IP audio network and utilizes Blade I/O units for routing, mixing and controlling audio and associated logic. The system can ingest and convert virtually all audio formats: mic and line level analog, AES/EBU, SPDIF, AoIP, MADI, SDI and AES67. Loudness metering, phase control, and full EQ/Dynamics are included.

LXE GUI

Every switch and every button on the surface can be programmed for function, mode, and even color (switches are RGB led illuminated). All soft controls are scriptable, letting you create powerful macros for as many controls as you want. Multiple full color OLED displays keep pace with ongoing operations, and event recall allows one-touch console reconfiguration. With its inherent control flexibility and ability to access thousands of signals (sources and destinations are limited only by the size of the network), the LXE takes facility workflows and audio control to a new level.

SCREENBUILDER™ LXE

LXE’s GUI has pre-built screens for everything you normally use – metering, clocks, timers,  dynamics, EQ, assigns, and more. All are touchscreen accessible with gestures you’re used to using on your smart devices. Other, more customizable screens can be created using ScreenBuilder™LXE software by simply dragging and dropping objects and defining their functions via a simple wizard interface. You can store multiple custom screens to go with your custom LXE setups.

OPTIONAL VOXPROX® ONBOARD

The LXE is now available with optional VoxPro onboard for a fully integrated mixing, routing, and live editing experience.

Integrating VoxPro into the LXE console reduces workspace clutter and gives talent more tools at their fingertips during editing and recording, including control for routing and salvos. Real-time editing is within easy reach instead of in a separate controller off to the side.
