Audioarts LiON

FM/HD AUDIO PROCESSOR

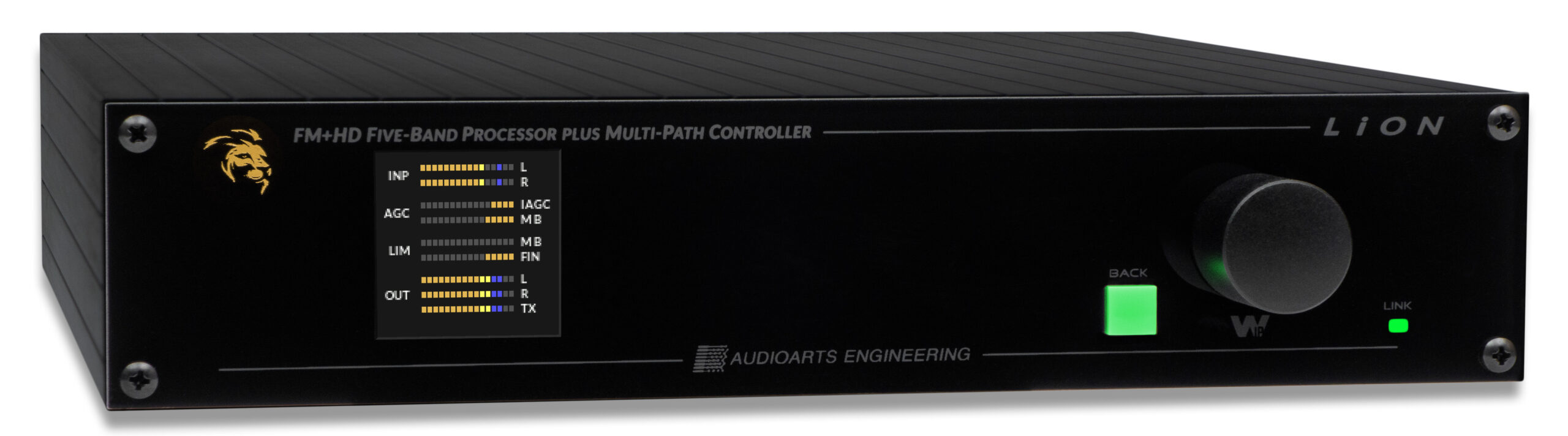

Audioarts LiON
Meet AUDIOARTS LION

This cool cat has big processing chops and a small footprint. The mighty LiON uses the latest algorithms to deliver the best on-air quality, even from highly compressed source material. Airy highs, a smooth midrange, and deep lows you can feel, this low-cost, half rack sized FM/HD audio processor has all the advanced audio processing tools at an unbeatable price.



Audioarts LiON Single Rackmount
Audioarts LiON Double Rackmount

AUDIOARTS LION

FM/HD AUDIO PROCESSOR
  •  Advanced Processing: Utilizes next-gen multiband AGC and distortion-masked FM peak clipper, resulting in loud, yet dynamic programming.
  • Intelligent AGC: The iAGC (intelligent AGC) ensures consistent, balanced sound across a variety of source material.
  • Unified Processing: Each stage in the processing chain interacts intelligenty with the other processing stages to create a dynamic, yet dominant presence on the dial.
  • Smart Stereo Enhancement: Provides a wide, stable stereo image and reveals nuanced details in music.
  • BS.1770 Loudness Controller: The HD+ processing includes a BS.1770-compliant automatic loudness controller with a settable LUFS target and full metering of short and long term loudness.
  • RDS Generator: Provides full FM RDS encoding for song, title and station data.
  • Bass Management: Enhances bass impact and clarity without distorting mid and high frequencies.
  • Multipath Mitigation: Dynamically reduces multipath interference to extend listening area.
  • WheatNet IP Compatible: Includes full WheatNet IP connectivity for remote control and integration into the studio network.
  • Baseband192 Technology: Digitizes the multiplex spectrum for superior signal performance and reliability.
  • Flexible Connectivity: Offers analog, AES, and WheatNet IP inputs, along with various output options, including 192kHz digital MPX.
  • User-Friendly Interface: Features a full graphic user interface for intuitive local and remote control.
Audioarts LiON - Block Diagram

OVERVIEW

AUDIOARTS LION, FM/HD AUDIO PROCESSOR

At last, an affordable FM/HD audio processor with the algorithm prowess for transforming highly compressed source music into a more robust, dynamic listener experience. The Audioarts LiON uses advanced next-gen multiband AGC and clipping algorithms developed specifically for today’s source content and listening devices.

LiON includes stereo enhance, RDS, and it is available in double or single rackmount options.



LION REMOTE APP
MP532 - RDS Data

While you can access and adjust virtually all audio parameters through LiON’s multi-tab GUI, you don’t have to. Rather than wade through multiple screens (example: AGC/COMP menu shown above) our LiON Remote App lets you concentrate on what you hear, not what you see. The app makes the tough, behind-the-scenes decisions based on our simple-to-use controls supplied for TEXTURE (Drive, Density, Loudness) and EQ (Low, Warmth, High). It’s as if we send a processing expert with each box!
